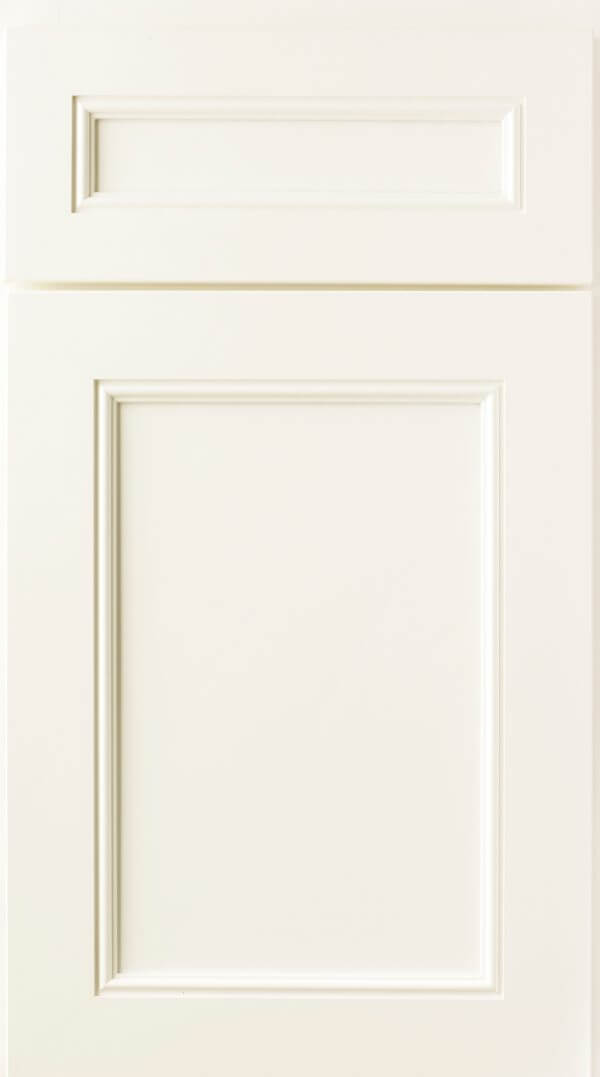

Berwyn – Opal Paint

Style: Full overlay, soft-close
Doors: HDF with MDF center panel
Door Hinges: Soft-close
Drawer Front: HDF with MDF center panel
Drawer Box: Dovetailed, 5/8” solid maple
Drawer Glides: Soft-close, full-extension
Side and Back Panels: 1/2” plywood
Top and Bottom Panels: 1/2″ plywood
Interior: White
Shelves: Bull-nosed, 3/4” plywood

View More Back to Top

Scroll down for pricing.

This door style and color has an extended lead time of 8 weeks.

Berwyn – Opal Paint

Wall Cabinets

Details:

All single-door cabinets are hinged left
Cabinets can be flipped during installation for right hinge applications
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

Wall - 12” High
Two butt doors Shelves not available Widths: 30″- 39″

SKU	W	H	D	Price
W3012	30	12	12	$168.00
W3312	33	12	12	$174.00
W3612	36	12	12	$182.00
W3912	39	12	12	$254.00

Wall - 15” High
Two butt doors Shelves not available Widths: 24″- 36″

SKU	W	H	D	Price
W2415DD	24	15	12	$182.00
W3015	30	15	12	$184.00
W3315	33	15	12	$187.00
W3615	36	15	12	$191.00

Wall - 18” High
Two butt doors Shelves not available Widths: 24″- 36″

SKU	W	H	D	Price
W2418DD	24	18	12	$189.00
W3018	30	18	12	$191.00
W3318	33	18	12	$199.00
W3618	36	18	12	$212.00

Wall - 18” High
Two doors, cabinet with center stile Shelves not available Width: 39″

SKU	W	H	D	Price	QTY.
W3918	39	18	12	$328.00

Wall - 24” High
Single door One adjustable shelf Width: 21″

SKU	W	H	D	Price	QTY.
W2124	21	24	12	$219.00

Wall - 24” High
Two butt doors One adjustable shelf Widths: 24″- 36″

SKU	W	H	D	Price
W2424DD	24	24	12	$257.00
W2724	27	24	12	$264.00
W3024	30	24	12	$309.00
W3324	33	24	12	$320.00
W3624	36	24	12	$361.00

Wall - 24” High
Two doors, cabinet with center stile One adjustable shelf Width: 39″

SKU	W	H	D	Price	QTY.
W3924	39	24	12	$404.00

Wall - 30" High
Single door Two adjustable shelves Widths: 9″- 21″

SKU	W	H	D	Price
W0930	9	30	12	$148.00
W1230	12	30	12	$177.00
W1530	15	30	12	$182.00
W1830	18	30	12	$191.00
W2130	21	30	12	$219.00

Wall - 30" High
Two butt doors Two adjustable shelves Widths: 24″- 36″

SKU	W	H	D	Price
W2430DD	24	30	12	$273.00
W2730	27	30	12	$283.00
W3030	30	30	12	$302.00
W3330	33	30	12	$314.00
W3630	36	30	12	$359.00

Wall - 30" High
Two door, cabinet with center stile Two adjustable shelves Widths: 39″- 42″

SKU	W	H	D	Price	QTY.
W3930	39	30	12	$371.00
W4230	42	30	12	$381.00

Wall - 36" High
Single door Two adjustable shelves Widths: 9″- 21″

SKU	W	H	D	Price
W0936	9	36	12	$158.00
W1236	12	36	12	$182.00
W1536	15	36	12	$208.00
W1836	18	36	12	$232.00
W2136	21	36	12	$258.00

Wall - 36" High
Two butt doors Two adjustable shelves Widths: 24″- 36″

SKU	W	H	D	Price
W2436DD	24	36	12	$307.00
W2736	27	36	12	$319.00
W3036	30	36	12	$334.00
W3336	33	36	12	$359.00
W3636	36	36	12	$385.00

Wall - 36" High
Two doors, cabinet with center stile Two adjustable shelves Width: 42″

SKU	W	H	D	Price	QTY.
W4236	42	36	12	$445.00

Wall - 42" High
Single door Three adjustable shelves Widths: 9″- 21″

SKU	W	H	D	Price
W0942	9	42	12	$177.00
W1242	12	42	12	$212.00
W1542	15	42	12	$232.00
W1842	18	42	12	$258.00
W2142	21	42	12	$278.00

Wall - 42" High
Two butt doors Three adjustable shelves Widths: 24″- 36″

SKU	W	H	D	Price
W2442DD	24	42	12	$335.00
W2742	27	42	12	$343.00
W3042	30	42	12	$368.00
W3342	33	42	12	$388.00
W3642	36	42	12	$420.00

Wall - 42" High
Two doors, cabinet with center stile Three adjustable shelves Width: 42″

SKU	W	H	D	Price	QTY.
W4242	42	42	12	$485.00

REFRIGERATOR WALL - 24" DEEP
Two butt doors Shelves not available in 12″, 18″, or 21″ high 24″ high cabinets include one adjustable shelf Width: 33″

SKU	W	H	D	Price
RW3312	33	12	24	$258.00
RW3318	33	18	24	$258.00
RW3321	33	21	24	$307.00
RW3324	33	24	24	$356.00

REFRIGERATOR WALL - 24" DEEP
Two butt doors Shelves not available in 12″, 18″, or 21″ high 24″ high cabinets include one adjustable shelf Width: 36″

SKU	W	H	D	Price
RW3612	36	12	24	$264.00
RW3618	36	18	24	$269.00
RW3621	36	21	24	$312.00
RW3624	36	24	24	$356.00

REFRIGERATOR WALL - 24" DEEP
Two doors, cabinet with center stile Shelves not available in 21″ high 24″ high cabinets include one adjustable shelf Width: 39″

SKU	W	H	D	Price	QTY.
RW3921	39	21	24	$423.00
RW3924	39	24	24	$436.00

DIAGONAL CORNER WALL
Single door 30″ and 36″ high – two adjustable shelves 42″ high – three adjustable shelves WDC24 – 12″ deep WDC27 – 15″ deep Widths: 24″ and 27″

SKU	W	H	D	Price
WDC2430	24	30	12	$375.00
WDC2436	24	36	12	$394.00
WDC2736	27	36	15	$535.00
WDC2442	24	42	12	$432.00
WDC2742	27	42	15	$542.00

WALL EASY REACH
Soft-close not available Bifold doors 30″ and 36″ high – two adjustable shelves 42″ high – three adjustable shelves Width: 24″

SKU	W	H	D	Price
WER2430	24	30	12	$401.00
WER2436	24	36	12	$416.00
WER2442	24	42	12	$443.00

WALL BLIND CORNER
Single door, hinged left Does not include filler Filler purchase required Click ‘View More’ button for filler requirement and min/max pull distance from wall 30″ and 36″ high – two adjustable shelves 42″ high – three adjustable shelves Blind cabinets can be pulled 3″ Blind opening is 6″ on ALL sizes Widths: 24″ and 30″ (See ‘View More’ button pull chart) View More

WALL BLIND CORNER

Single door, hinged left
Does not include filler
Filler purchase required
Click ‘View More’ button for filler requirement and min/max pull distance from wall
30″ and 36″ high – two adjustable shelves
42″ high – three adjustable shelves
Blind cabinets can be pulled 3″
Blind opening is 6″ on ALL sizes
Widths: 24″ and 30″ (See ‘View More’ button pull chart)

SKU	W	H	D	Price
WC2430	23	30	12	$219.00
WC3030	29	30	12	$248.00
WC3036	29	36	12	$368.00
WC3042	29	42	12	$401.00

WALL BLIND CORNER
Two butt doors Does not include filler Filler purchase required Click ‘View More’ button for filler requirement and min/max pull distance from wall Two adjustable shelves Blind cabinets can be pulled 3″ Blind opening is 6″ on ALL sizes Width: 42″ (See ‘View More’ button pull chart) View More

SKU	W	H	D	Price	QTY.
WC4230	41	30	12	$343.00

WALL - DOORS PREPPED FOR GLASS
Two butt doors Glass and glass clips are not included Cabinet doors do not include mullions, only door frames Please order glass after receipt of product to ensure proper fit Doors can receive up to 3/16″ thick glass 30″ and 36″ high – two adjustable shelves 42″ high – three adjustable shelves 90° flat-front shelves are edge banded to match interior Cabinets have a matching interior and exterior Special order available for different widths Width: 30″

WALL - DOORS PREPPED FOR GLASS

Two butt doors
Glass and glass clips are not included
Cabinet doors do not include mullions, only door frames
Please order glass after receipt of product to ensure proper fit
Doors can receive up to 3/16″ thick glass
30″ and 36″ high – two adjustable shelves
42″ high – three adjustable shelves
90° flat-front shelves are edge banded to match interior
Cabinets have a matching interior and exterior
Special order available for different widths
Width: 30″

SKU	W	H	D	Price
WMD3030	30	30	12	$763.00
WMD3036	30	36	12	$828.00
WMD3042	30	42	12	$867.00

BOOKCASE CABINET – 30" HIGH
No door Matching Interior Two adjustable shelves Widths: 18″ and 24″

SKU	W	H	D	Price	QTY.
BK1830	18	30	12	$247.00
BK2430	24	30	12	$304.00

Base Cabinets

Details:

All single-door cabinets are hinged left
Doors will be reversed during installation for right hinge applications
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

BASE
One full height door Does not include adjustable shelf Width: 9″

SKU	W	H	D	Price	QTY.
B09FH	9	34.5	24	$283.00

BASE
Single door One drawer One adjustable half-depth shelf Widths: 12″- 21″

SKU	W	H	D	Price
B12	12	34.5	24	$323.00
B15	15	34.5	24	$354.00
B18	18	34.5	24	$375.00
B21	21	34.5	24	$393.00

BASE
Two butt doors One drawer One adjustable half-depth shelf Widths: 24″- 36″

SKU	W	H	D	Price
B24DD	24	34.5	24	$458.00
B27	27	34.5	24	$467.00
B30	30	34.5	24	$488.00
B33	33	34.5	24	$520.00
B36	36	34.5	24	$608.00

BASE
Two doors, cabinet with center stile Two drawers One adjustable half-depth shelf Width: 39″ and 42″

SKU	W	H	D	Price	QTY.
B39	39	34.5	24	$649.00
B42	42	34.5	24	$679.00

3 DRAWER BASE
Three drawers Special order available for 2 and 4 drawer bases Widths: 12″- 36″

SKU	W	H	D	Price
DB12D3	12	34.5	24	$519.00
DB15D3	15	34.5	24	$562.00
DB18D3	18	34.5	24	$592.00
DB21D3	21	34.5	24	$632.00
DB24D3	24	34.5	24	$662.00
DB30D3	30	34.5	24	$775.00
DB36D3	36	34.5	24	$809.00

SINK BASE
Two butt doors One false panel Widths: 24″- 36″

SKU	W	H	D	Price
SB24DD	24	34.5	24	$345.00
SB27	27	34.5	24	$354.00
SB30	30	34.5	24	$362.00
SB33	33	34.5	24	$375.00
SB36	36	34.5	24	$403.00

SINK BASE
Two doors, cabinet with center stile Two false panels Widths: 39″ and 42″

SKU	W	H	D	Price	QTY.
SB39	39	34.5	24	$432.00
SB42	42	34.5	24	$454.00

FARM SINK BASE
Two butt doors Opening is 3″ less than total width of cabinet and 8 3/4″ high Maximum cut out height: Standard overlay = 11″ Full overlay = 10″ Special Order available for different widths Width: 36″

SKU	W	H	D	Price	QTY.
FSB36	36	34.5	24	$554.00

CORNER SINK BASE
Single door One false panel 36″ and 42″ corner application

SKU	W	H	D	Price	QTY.
SCB36	36	34.5	24	$423.00
SCB42	42	34.5	24	$506.00

BASE BLIND CORNER
One door and one drawer Does not include filler Filler purchase required Click ‘View More’ button for filler requirement and min/max pull distance from wall One fixed half-depth shelf Center stile is 6″ Door and drawer can be reversed during installation for left blind application Widths: 36″-48″ (See ‘View More’ button pull chart) View More

SKU	W	H	D	Price
BC36	27	34.5	24	$403.00
BC42	36	34.5	24	$458.00
BC48	48	34.5	24	$560.00

BASE LAZY SUSAN
Soft-close not available Doors are attached to shelf and rotate with the shelf 24″ diameter lazy susan For 36″ corner application View More

SKU	W	H	D	Price	QTY.
LS36	36	34.5	-	$602.00

BASE LAZY SUSAN EASY REACH

Soft-close not available
Use when household doorway opening is less than 34 1/2″
Cabinet Width is 30″ with a 6″ pull from wall
28″ diameter lazy susan
Bifold doors
Independent rotating plastic shelves, center pole
Opening is 21 3/4″
Cabinet depth is 18″ deep for easy access and must be installed 6″ from wall to align with adjacent 24″ deep cabinet
For 36″ corner application

SKU	W	H	D	Price	QTY.
SER36	36	34.5	18	$726.00

BASE SUPER SUSAN
Soft-close not available Household doorway opening requirement is 34 3/4″ with cabinet on side 32″ diameter lazy susan Bifold doors Independent rotating plastic shelves, center pole Opening is 21 3/4″ Cabinet depth is 23 3/4″ and must be installed 3/4″ from wall to align with adjacent 24″ deep cabinet For 36″ corner application View More

SKU	W	H	D	Price	QTY.
SS36	36	34.5	23.75	$822.00

BASE EASY REACH

Soft-close not available
18″ deep; requires 6″ pull from wall
Additional base skin panel (BSKIN) may be required if cabinet side is visible
Cabinet depth is 18″ deep for easy access and must be installed 6″ from wall to align with adjacent 24″ deep cabinet
Bifold doors
Two adjustable shelves
Opening for BER33 is 10 1/2″
Opening for BER36 is 14 3/4″
BER33 is for 33″ corner application
BER36 is for 36″ corner application

SKU	W	H	D	Price	QTY.
BER33	33	34.5	18	$456.00
BER36	36	34.5	18	$465.00

BASE MICROWAVE
Includes finished interior and shelf area Opening: 27″ x 16″ (W x H) One lower drawer Fits most microwave trim kits (Check microwave trim kit specifications to confirm trim kit height is compatible) Width: 30″

SKU	W	H	D	Price	QTY.
BMW30	30	34.5	24	$593.00

BASE WASTEBASKET
Top mounted wastebaskets Includes two white 35-quart trash cans Width: 18″

SKU	W	H	D	Price	QTY.
BWB18	18	34.5	24	$709.00

BASE ANGLE END
One door One false panel Choose right or left hand Hinge is always on 12″ deep side of cabinet BEC12L shown in illustration Width: 12″

SKU	W	H	D	Price	QTY.
BEC12L	12	34.5	-	$289.00
BEC12R	12	34.5	-	$289.00

CORNER SINK BASE FRONT AND FLOOR
Single door One false panel Face frame and floor only For 36″ corner application

SKU	W	H	D	Price	QTY.
SCB36FF	36	34.5	24	$289.00

Tall Cabinets

Details:

All single-door cabinets are hinged left
Doors will be reversed during installation for right hinge applications
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

UTILITY CABINET
Two doors Shelves not included Utility Cabinet Shelf-Kit (U1824SHELFKIT) required and sold separately below Unfinished toekick is attached to all utility cabinets Width: 18″

SKU	W	H	D	Price
U188424	18	84	24	$602.00
U189024	18	90	24	$659.00
U189624	18	96	24	$701.00

UTILITY CABINET
Two doors Shelves not included Utility Cabinet Shelf-Kit (U2424SHELFKIT) required and sold separately below Unfinished toekick is attached to all utility cabinets Width: 24″

SKU	W	H	D	Price
U248424	24	84	24	$835.00
U249024	24	90	24	$879.00
U249624	24	96	24	$959.00

UTILITY CABINET SHELF
SHELFKIT includes four shelves and clips SHELF includes single shelf and clips 1824 Shelf: 16 3/16” x 22 3/16“ 2424 Shelf: 22 3/16” x 22 3/16“

SKU	W	H	D	Price
U1824SHELFKT	16 3/16	3/4	22 3/16	$145.00
U1824SHELF	16 3/16	3/4	22 3/16	$67.00
U2424SHELFKT	22 3/16	3/4	22 3/16	$145.00
U2424SHELF	22 3/16	3/4	22 3/16	$67.00

SINGLE OVEN CABINET
Two butt doors Three bottom drawers Doors and drawers are not full overlay No shelves included in upper cabinet Upper cabinet shelf (OCSHELF) available below for 90″ and 96″ tall oven cabinets Drawers may be removed and cut out to create a Double Oven opening Oven cabinet has a 3″ left and right stile running the entire height of the cabinet Width: 33″ View More

SKU	W	H	D	Price
OC338424	33	84	24	$1339.00
OC339024	33	90	24	$1468.00
OC339624	33	96	24	$1528.00

DOUBLE OVEN CABINET

Two butt doors
One drawer
Doors and drawers are not full overlay
No shelves included in upper cabinet
Upper cabinet shelf (OCSHELF) available below for 90″ and 96″ tall oven cabinets
Oven cabinet has a 3″ left and right stile running the entire height of the cabinet
Oven opening: 27″ x 47 1/4” (W x H)
Rail below upper cabinets is 6″ high and can be trimmed or removed for an opening height up to 53 1/4“
Width: 33″

SKU	W	H	D	Price	QTY.
OC339624DBL	33	96	24	$1520.00

OVEN CABINET SHELF
Full depth 3/4” shelf for upper cabinet of 90″ and 96″ tall oven cabinet 31 3/16” x 22 3/16“

SKU	W	H	D	Price	QTY.
OC3324SHELF	31 3/16	3/4	22 3/16	$67.00

Vanities

Details:

All single-door cabinets are hinged left
Doors will be reversed during installation for right hinge applications
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

VANITY SINK BASE - 21" DEEP
Two butt doors One false panel Widths: 24″- 36″

SKU	W	H	D	Price
VSB24DD	24	34.5	21	$311.00
VSB27	27	34.5	21	$311.00
VSB30	30	34.5	21	$336.00
VSB33	33	34.5	21	$345.00
VSB36	36	34.5	21	$358.00

VANITY SINK BASE - 21" DEEP
Two doors with center mullion Two false panels Width: 48″

SKU	W	H	D	Price	QTY.
VSB48	48	34.5	21	$427.00

VANITY SINK DRAWER BASE - 21" DEEP
Two butt doors Two drawers One false panel Width: 36″

SKU	W	H	D	Price	QTY.
VSDB36	36	34.5	21	$516.00

VANITY SINK DRAWER BASE - 21" DEEP
Two doors, cabinet with center stile Two drawers One false panel Widths: 42″- 48″

SKU	W	H	D	Price	QTY.
VSDB42	42	34.5	21	$608.00
VSDB48	48	34.5	21	$645.00

VANITY SINK DRAWER BASE - 21" DEEP
Two sets of butt doors Two false fronts Four drawers in center Center drawers area is 12″ wide Width: 60″

SKU	W	H	D	Price	QTY.
VSB60DB4	60	34.5	21	$1181.00

VANITY COMBO - 21" DEEP
Single door One false panel VBL: three drawers on left VBR: three drawers on right Accommodates center bowl top Width: 30″

SKU	W	H	D	Price	QTY.
VBL30	30	34.5	21	$808.00
VBR30	30	34.5	21	$808.00

VANITY COMBO - 21" DEEP
Two butt doors One false panel VBL: three drawers on left VBR: three drawers on right Accommodates center bowl top Width: 36″

SKU	W	H	D	Price	QTY.
VBL36	36	34.5	21	$833.00
VBR36	36	34.5	21	$833.00

VANITY COMBO - 21" DEEP
Two butt doors One false panel VBL: four drawers on left VBR: four drawers on right Accommodates center bowl top Width: 42″

SKU	W	H	D	Price	QTY.
VBL42	42	34.5	21	$870.00
VBR42	42	34.5	21	$870.00

VANITY BASE - 21" DEEP
Single door One drawer Widths: 12″- 18″

SKU	W	H	D	Price
VB12	12	34.5	21	$310.00
VB15	15	34.5	21	$339.00
VB18	18	34.5	21	$364.00

VANITY DRAWER BASE - 21" DEEP
Four drawers Widths: 12″- 18″

SKU	W	H	D	Price
VDB12	12	34.5	21	$535.00
VDB15	15	34.5	21	$574.00
VDB18	18	34.5	21	$592.00

LINEN CABINET WITH DRAWERS - 21" DEEP
One door Three drawers One fixed shelf between door and drawers Three shelves included in upper cabinet Top drawer front is approximately 30″ high and will not align with other vanity cabinets Width: 18″

SKU	W	H	D	Price	QTY.
LCD188021	18	80	21	$970.00

LINEN CABINET - 21" DEEP
Two doors Shelves not included Linen Cabinet Shelf-Kit (LC158421SHELFKIT) required and sold separately below Unfinished toekick is attached to all utility cabinets Width: 15″

SKU	W	H	D	Price	QTY.
LC158421	15	84	21	$604.00

LINEN CABINET SHELF KIT
SHELFKIT includes four shelves and clips Shelves: 13 3/16” x 19 3/16“

SKU	W	H	D	Price	QTY.
LC1521SHELFK	13 3/16	3/4	19 3/16	$144.00

MEDICINE CABINET – 24" HIGH
Single door (no mirror) Two adjustable shelves Cutout for recessed installation: 14 1/2” wide x 23″ high May be surface mounted if trimmed out Width: 15″

SKU	W	H	D	Price	QTY.
WMC1524	15	24	4	$238.00

UNDERMOUNT DRAWER - 21" DEEP
Trimmable to 27 1/2” wide Width: 36″

SKU	W	H	D	Price	QTY.
VDT36	36	-	21	$252.00

Accessories

Details:

Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

PLATE RACK – 18" HIGH
Matching interior Unfinished ends Width: 30″

SKU	W	H	D	Price	QTY.
PR30	30	18	12	$436.00

WINE RACK – 18" HIGH
Matching interior Unfinished ends Width: 30″

SKU	W	H	D	Price	QTY.
WR30	30	18	12	$445.00

MICROWAVE WALL CABINET
Matching interior Inside dimensions: 27″ x 15″ (W x H) Includes loose 3/4” plywood shelf (14″ deep) Width: 30″

SKU	W	H	D	Price	QTY.
MWC3018	30	18	12	$343.00

FLOATING SHELF
Supports up to 100 lbs Must be supported by a minimum of two stud walls 2 1/2″ thick 10″ deep Widths: 24″- 36″

SKU	W	H	D	Price
FSHELF24	24	2.5	10	$340.00
FSHELF30	30	2.5	10	$380.00
FSHELF36	36	2.5	10	$439.00

ROMAN ARCH VALANCE
All valances are 3/4” thick solid maple Width: 49″

SKU	W	H	D	Price	QTY.
V549RA	49	5	3/4	$64.00

STRAIGHT VALANCE
All valances are 3/4” thick solid maple Width: 49″ and 73

SKU	W	H	D	Price	QTY.
V549ST	49	5	3/4	$42.00
V573ST	73	5	3/4	$61.00

FULL-DEPTH BASE SHELF
Single full depth shelf Fits full depth base cabinets Cabinets without full depth shelf modification require additional holes drilled behind face frame at installation

SKU	W	H	D	Price
B1224SHELF	10 3/16	3/4	22 3/16	$31.00
B1524SHELF	13 3/16	3/4	22 3/16	$31.00
B1824SHELF	16 3/16	3/4	22 3/16	$31.00
B2124SHELF	19 3/16	3/4	22 3/16	$31.00
B2424SHELF	22 3/16	3/4	22 3/16	$31.00
B2724SHELF	25 3/16	3/4	22 3/16	$62.00
B3024SHELF	28 3/16	3/4	22 3/16	$62.00
B3324SHELF	31 3/16	3/4	22 3/16	$62.00
B3624SHELF	34 3/16	3/4	22 3/16	$62.00

FULL-DEPTH BASE BLIND CORNER SHELF
Single full depth shelf Fits full depth corner base cabinets Cabinets without full depth shelf modification require additional holes drilled behind face frame at installation

SKU	W	H	D	Price
BC3624SHELF	25 3/16	3/4	22 3/16	$62.00
BC4224SHELF	34 3/16	3/4	22 3/16	$62.00
BC4824SHELF	46 3/16	3/4	22 3/16	$62.00

PULL-OUT INSTALL KIT (REQUIRED WITH PULL-OUT SHELVES)
Required to install pull-out shelves Can be used with side-mount or undermount soft-close glides Multiple pull-out shelves can be used with one installation kit Kits include four pilasters with predrilled holes and mounting hardware Tall cabinets require two installation kits, depending on tray locations

SKU	W	H	D	Price	QTY.
ROINSTKIT	-	-	-	$63.00

PULL-OUT SHELF FOR BASE AND TALL CABINETS - (SELF-CLOSE)
Pull-Out Install Kit (ROINSTKIT) above is required Epoxy side-mounted self-close glides Single drawer Inside height – 1 1/2“ Overall height – 2 1/4“ Solid wood dovetail construction Includes 5/8” thick dovetailed drawer box 75 lb. capacity per shelf FIELD INSTALLED View More

SKU	W	H	D	Price
POS12	7 1/2	2 1/4	21 3/4	$42.00
POS15	10 1/2	2 1/4	21 3/4	$47.00
POS18	13 1/2	2 1/4	21 3/4	$53.00
POS21	16 1/2	2 1/4	21 3/4	$59.00
POS24	19 1/2	2 1/4	21 3/4	$64.00
POS27	22 1/2	2 1/4	21 3/4	$67.00
POS30	25 1/2	2 1/4	21 3/4	$72.00
POS33	28 1/2	2 1/4	21 3/4	$81.00
POS36	31 1/2	2 1/4	21 3/4	$84.00

PULL-OUT SHELF FOR BASE AND TALL CABINETS - (SOFT-CLOSE)
Pull-Out Install Kit (ROINSTKIT) above is required Undermount soft-close glides Single drawer Inside height – 1 1/2“ Overall height – 2 1/4“ Solid wood dovetail construction Includes 5/8” thick dovetailed drawer box 75 lb. capacity per shelf FIELD INSTALLED View More

SKU	W	H	D	Price
POSSC12	7 1/2	2 1/4	21 3/4	$88.00
POSSC15	10 1/2	2 1/4	21 3/4	$91.00
POSSC18	13 1/2	2 1/4	21 3/4	$95.00
POSSC21	16 1/2	2 1/4	21 3/4	$98.00
POSSC24	19 1/2	2 1/4	21 3/4	$101.00
POSSC27	22 1/2	2 1/4	21 3/4	$106.00
POSSC30	25 1/2	2 1/4	21 3/4	$109.00
POSSC33	28 1/2	2 1/4	21 3/4	$112.00
POSSC36	31 1/2	2 1/4	21 3/4	$115.00

BAR BRACKET
8″ high x 8″ deep

SKU	W	H	D	Price	QTY.
BARBRACKET	3	8	8	$83.00

BUN FOOT
3″ wide x 4 1/2″ high

SKU	W	H	D	Price	QTY.
BFOOT	3	4.5	3	$58.00

TAPERED FOOT
3 1/4” wide at the top 1 3/4″ wide at the bottom 4 1/2” high

SKU	W	H	D	Price	QTY.
TFOOT	3.25	4.5	3.25	$58.00

HINGE ANGLE RESTRICTION CLIP
Reduces door swing from 108° to 85° Requires door removal for installation Installs onto hinge in closed position

SKU	W	H	D	Price	QTY.
HINGECLIP	-	-	-	$2.00

HINGE CAP
Covers hinge holes for door mounted Storage Solution pull-outs Plastic caps come in 3 colors HINGECAPWH – White HINGECAPAL – Almond HINGECAPBR – Brown

SKU	W	H	D	Price
HINGECAPWH	-	-	-	$1.00
HINGECAPAL	-	-	-	$1.00
HINGECAPBR	-	-	-	$1.00

G-TAPE
Masking and surface protection 2″ wide x 164″ long Residue-free when removed from most surfaces Excellent adhesion and removability GTAPEBLUE is heavy-duty and has advanced acrylic adhesion

SKU	W	H	D	Price
GTAPECLEAR	2	164	-	$20.00
GTAPEGREEN	2	164	-	$20.00
GTAPEBLUE	2	164	-	$20.00

TOUCH-UP KIT
Touch-up kits include 1 putty fill stick, 1 touch-up marker, and 1 small bottle of top coat

SKU	W	H	D	Price	QTY.
TOUCHUPKIT	-	-	-	$40.00

PAINT - 12OZ SPRAY CAN
12oz spray can of paint Paint contains no primer

SKU	W	H	D	Price	QTY.
PAINTSPRAY	-	-	-	$46.00

PAINT - PINT
Pint of paint

SKU	W	H	D	Price	QTY.
PAINTPINT	-	-	-	$64.00

SAMPLE DOOR
Small sample door 11 1/2″ x 13 1/2″ x 3/4″

SKU	W	H	D	Price	QTY.
SAMPLEDOOR	11 1/2	13 1/2	3/4	$25.00

Storage Solutions

Details:

All storage solutions are field installed
Cabinet fit sizes are based on 34 1/2″ cabinet heights
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

DRAWER - SPICE INSERT
Trim to fit Maple construction with natural finish B1518SPICEK fits B15 and B18 cabinets B2124SPICEK fits B21 and B24 cabinets B2736SPICEK fits B27 and B36 cabinets View More

SKU	W	H	D	Price
B1518SPICEK	16	1 1/2	19 3/4	$90.00
B2124SPICEK	22	1 1/2	19 3/4	$100.00
B2736SPICEK	33 1/8	1 3/4	19 3/4	$214.00

DRAWER - K-CUP ORGANIZER
Maple construction with natural finish B18KCUPK fits B18 cabinets B24KCUPK fits B24 cabinets View More

SKU	W	H	D	Price	QTY.
B18KCUPK	16	2 3/8	19 3/4	$124.00
B24KCUPK	22	2 3/8	19 3/4	$152.00

DRAWER - CUTLERY INSERT
Trim to fit Maple construction with natural finish B1518CUTK: Fits B15 and B18 cabinets B2124CUTK: Fits B21 and B24 cabinets View More

SKU	W	H	D	Price	QTY.
B1518CUTK	14 5/8	2 7/8	22	$65.00
B2124CUTK	20 5/8	2 7/8	22	$85.00

DRAWER - CUTLERY INSERT
Trim to fit Maple construction with natural finish Fits B30, B33, B36 cabinets View More

SKU	W	H	D	Price	QTY.
B3036CUTK	33 1/8	2 7/8	22	$222.00

DRAWER - DOUBLE KNIFE BLOCK INSERT
Trim to fit Maple construction with natural finish 55 slots to store various sized knives and other utensils Fits B15, B18 and B21 cabinets View More

SKU	W	H	D	Price	QTY.
B1521KNK	18 1/2	2	22	$109.00

DRAWER - KNIFE BLOCK INSERT
Trim to fit Maple construction with natural finish Fits B30, B33 and B36 cabinets View More

SKU	W	H	D	Price	QTY.
B3036KNK	33 1/8	2 7/8	22	$214.00

DRAWER - UTILITY INSERT
Trim to fit Maple construction with natural finish Fits B27, B30, B33 and B36 cabinets View More

SKU	W	H	D	Price	QTY.
B2736UTK	33 1/8	2 7/8	22	$222.00

DRAWER BASE - PEG ORGANIZATION INSERT
Trim to fit Maple construction with natural finish Peg organization for deep drawers DB30PEGK fits DB30 and BMW30 bottom drawers, Includes (12) push-in pegs DB36PEGK fits DB36 bottom drawers, Includes (16) push-in pegs View More

SKU	W	H	D	Price	QTY.
DB30PEGK	30 3/8	6 3/4	21 1/2	$122.00
DB36PEGK	39 3/8	6 3/4	21 1/2	$157.00

DOOR MOUNT CUTTING BOARD
Premium wood cutting board Includes cutting board and door mount holder Cutting board is birch and maple combination B15DMCB fits 15″ wide cabinets, Cutting board – 7 3/4″ x 16″ x 1 1/4″ (W x H x D) B18DMCB fits 18″ wide cabinets, Cutting board – 10 3/4″ x 16″ x 1 1/4″ (W x H x D) View More

SKU	W	H	D	Price	QTY.
B15DMCBK	7 3/4	16	1 1/4	$107.00
B18DMCBK	10 3/4	16	1 1/4	$120.00

DOOR MOUNT - STORAGE KIT
Door mounted sink base storage Top shelf with plastic insert Bottom shelf for tall item storage Maple construction with natural finish SB3033DSTK fits cabinet with 15″ wide doors SB36DSTK fits cabinet with 18″ wide doors SB42DSTK fits cabinet with 21″ wide doors View More

SKU	W	H	D	Price
SB3033DSTK	-	-	-	$87.00
SB36DSTK	-	-	-	$96.00
SB42DSTK	-	-	-	$110.00

DOOR MOUNT - VANITY APPLIANCE STORAGE KIT
Door mounted vanity appliance storage Top shelf with (2) 1 1/4 quart stainless steel bins Non-skid lining on lower level shelf Maple construction with natural finish Fits cabinet with 15″ wide doors View More

SKU	W	H	D	Price	QTY.
VSB30ASTK	-	-	-	$102.00

DOOR MOUNT - VANITY WASTE BIN KIT
Door mounted vanity waste container Includes one silver, 8-quart waste bin Door mount is maple construction with natural finish Fits cabinet with 15″ wide doors View More

SKU	W	H	D	Price	QTY.
VSB30DWBK	-	-	-	$88.00

SINK BASE - STAINLESS STEEL TIP-OUT TRAY KIT
Includes one stainless steel Tip-out Tray with soft-close hinges Designed for sink base cabinets with one wide drawer front SB30TIPSSK fits 30″ wide sink base cabinets SB33TIPSSK fits 33″ wide sink base cabinets SB36TIPSSK fits 36″ wide sink base cabinets View More

SKU	W	H	D	Price
SB30TIPSSK	25	3	2 1/8	$66.00
SB33TIPSSK	28	3	2 1/8	$69.00
SB36TIPSSK	31	3	2 1/8	$73.00

SINK BASE - TIP-OUT TRAY
Can be used on vanity sink bases Includes one conventional open tray and one accessory tray with soap dish Both 11″ trays are white plastic SB27-36TIPOUT fits SB27, SB30, SB33 and SB36, includes one pair of hinges for single drawer front SB39-42TIPOUT fits SB39 and SB42, includes two pair of hinges for double drawer front View More

SKU	W	H	D	Price	QTY.
SB2736TIPK	11	-	-	$38.00
SB3942TIPK	11	-	-	$38.00

SINK BASE - REMOVABLE CADDY
Fits all sink base cabinets Adjustable/reversible handle and top tray accommodate plumbing fixtures May not fit unusual plumbing configurations Full-extension euro-glides with 75 lb rating Door mount bracket not available Easy removal to carry around house Width: 1 1 1/4″ View More

SKU	W	H	D	Price	QTY.
SBREMCADK	11 1/4	19 1/2	16 1/4	$115.00

SINK BASE - DRIP TRAY
Trim to fit Protects cabinets from minor leaks Almond color SB27-30DRIP fits SB27 and SB30 SB33-36DRIP fits SB33 and SB36 SB39-42DRIP fits SB39 and SB42 View More

SKU	W	H	D	Price
SB2730DRIPK	-	-	-	$70.00
SB3336DRIPK	-	-	-	$78.00
SB3942DRIPK	-	-	-	$87.00

WALL DIAGONAL - LAZY SUSAN, SHELF KIT
Fits Wall Diagonal Corner cabinets Rotating D-shaped lazy susan Mounts to bottom of cabinet or shelves 5/8″ thick shelf with 1″ rim Natural maple finish View More

SKU	W	H	D	Price	QTY.
WDC24LSK	20	1	-	$86.00

SUPER SUSAN UPGRADE KIT
Wood lazy susan upgrade for SS36 Two trays each 28″ diameter 5/8″ thick maple independently operated revolving trays Trays have a 2″ high banded wood rim Fits Super Susan (SS36) View More

SKU	W	H	D	Price	QTY.
SS36LSUK	28	-	-	$394.00

BASE CORNER - LAZY SUSAN, PULL-OUT SHELVES
Chrome plated pivoting shaft Two half moon shelves Shelves rotate and pull out independently Shelves are white polymer Pull out distance is 10 1/4″ BC42LSPO fits blind corner cabinet BC42 BC48LSPO fits blind corner cabinet BC48 View More

SKU	W	H	D	Price	QTY.
BC42LSPOK	33	15 7/8	16 1/2	$353.00
BC48LSPOK	39	15 7/8	16 1/2	$386.00

BASE - 3" FILLER PULL-OUT KIT
3″ wide base filler pull-out kit Requires a 3″ filler mounted to front; filler sold separately Recommended installation is between two cabinets Can also be installed between cabinet and a wall or cabinet and end panel with a stile Full extension Soft Close glides Three adjustable shelves View More

SKU	W	H	D	Price	QTY.
BFPO3K	-	-	-	$299.00

BASE - 6" FILLER PULL-OUT KIT
6″ wide base filler pull-out kit Requires a 6″ filler mounted to front; filler sold separately Recommended installation is between two cabinets Can also be installed between cabinet and a wall or cabinet and end panel with a stile Full extension Soft Close glides Three adjustable shelves View More

SKU	W	H	D	Price	QTY.
BFPO6K	-	-	-	$361.00

WALL - PULL-OUT ORGANIZER
Two adjustable shelves with chrome rails Fixed top shelf for 36″ and 42″ high cabinets Full-extension, soft-close glides Door mount bracket with 5″ of width and micro-tilt adjustment Natural maple finish WPO9: Fits 9″ wide wall cabinets WPO12: Fits 12″ wide wall cabinets View More

SKU	W	H	D	Price	QTY.
W09POK	-	26 1/16	10 3/4	$184.00
W12POK	-	26 1/16	10 3/4	$214.00

BASE FULL-HEIGHT - PULL-OUT ORGANIZER
Three adjustable shelves with chrome rails Full-extension, soft-close glides Door mount bracket with 5″ of width and micro-tilt adjustment Natural maple finish Fits B09 with full-height door View More

SKU	W	H	D	Price	QTY.
B09POK	-	35 1/2	22 1/2	$336.00

BASE FULL-HEIGHT - PULL-OUT, UTENSIL ORGANIZER
Two adjustable shelves with chrome rails Full-extension, soft-close glides Door mount bracket with 5″ of width and micro-tilt adjustment Natural maple finish Includes three stainless steel bins Fits B09 with full-height door View More

SKU	W	H	D	Price	QTY.
B09POUTK	-	25 1/2	22 1/2	$490.00

BASE - PULL-OUT ORGANIZER
Two adjustable shelves with chrome rails Full-extension, soft-close glides Door mount bracket with 5″ of width and micro-tilt adjustment Natural maple finish Fits B15 cabinet View More

SKU	W	H	D	Price	QTY.
B15POK	-	19 1/2	21 5/8	$499.00

BASE - TRAY DIVIDER
Chrome finish Fits all base, refrigerator wall and tall cabinets 24″ deep View More

SKU	W	H	D	Price	QTY.
TD12K	1/4	20	12	$18.00
TD18K	1/4	20	18	$19.00

BASE - POTS AND PANS HANGING ORGANIZER
Includes seven long hooks Solid wood with grey finish Full-extension, soft-close glides Fits all 24″ deep cabinets View More

SKU	W	H	D	Price	QTY.
PPORGK	-	5	22 3/4	$295.00

BASE - POTS AND PANS ORGANIZER
Chrome plated wire frame Full-extension, ball bearing slides – 100lb rated Independently operating shelves Top tier organizes lids Bottom tier with adjustable dividers B15PPORG fits B15 cabinet B24PPORG fits B24 cabinet View More

SKU	W	H	D	Price	QTY.
B15PPORGK	-	18	22	$212.00
B24PPORGK	-	18	22	$387.00

BASE - STORAGE ORGANIZER
Maple dovetail, bottom mount pull-out Undermount, soft-close glides Includes seven chrome “U-shaped” pegs Freestanding pull-out B18ORG fits B18 cabinet (5 adjustable dividers) B24ORG fits B24 (8 adjustable dividers) View More

SKU	W	H	D	Price	QTY.
B18ORGK	-	18	21 1/2	$531.00
B24ORGK	-	18	21 1/2	$576.00

TIERED COOKWARE ORGANIZER KIT
Two-tiered cookware organizer Natural maple construction Top shelf holds lids Organizer is pulled out after opening the door Undermount, Soft Close glides B18CWORGK fits B18 cabinet B24CWORGK fits B24 cabinet View More

SKU	W	H	D	Price	QTY.
B18CWORGK	-	-	-	$606.00
B24CWORGK	-	-	-	$701.00

BASE - WASTE CONTAINER, SINGLE
Single, 35-quart silver container Maple dovetail, bottom mount pull-out Full-extension, soft-close glides Mounts to cabinet bottom and door Door mount bracket with 5″ of width and micro-tilt adjustment Includes lid for sealed storage outside of cabinet Fits B15 cabinet View More

SKU	W	H	D	Price	QTY.
B15WBK	-	19 1/2	21 3/4	$455.00

BASE - WASTE CONTAINER, DOUBLE
Double, 35-quart silver containers Maple dovetail, bottom mount pull-out Full-extension, soft-close glides Mounts to cabinet bottom and door Door mount bracket with 5″ of width and micro-tilt adjustment Includes lid for sealed storage outside of cabinet Fits B18 cabinet View More

SKU	W	H	D	Price	QTY.
B18WBK	-	19 1/2	21 3/4	$490.00

BASE - WASTE CONTAINER, DOUBLE
Double, 35-quart silver containers Maple dovetail, bottom mount pull-out Full-extension, soft-close glides Mounts to cabinet bottom and door Door mount bracket with 5″ of width and micro-tilt adjustment Includes lid for sealed storage outside of cabinet Fits B21 cabinet View More

SKU	W	H	D	Price	QTY.
B21WBK	-	19 1/2	21 3/4	$524.00

Fillers and Panels

Details:

Panel’s face side matches outside cabinet color
Panel’s inner side matches inside cabinet color
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

FILLER – STANDARD
Fillers are 3/4” thick solid maple Fillers are finished on the face, left, and right sides; however, the sides receive a lesser finish If you require an end to be exposed, we suggest using a valance F330 and F360 may be used for either bases or 30″ walls F = Filler; WF = Wall Filler Available widths: 3″ and 6″

SKU	W	H	D	Price
F330	3	30	3/4	$27.00
F630	6	30	3/4	$56.00
WF336	3	36	3/4	$30.00
WF636	6	36	3/4	$66.00
WF342	3	42	3/4	$40.00
WF642	6	42	3/4	$73.00
F396	3	96	3/4	$73.00
F696	6	96	3/4	$146.00

FILLER - FLUTED
Fillers are 3/4” thick solid maple Fillers are finished on the face, left, and right sides; however, the sides receive a lesser finish If you require an end to be exposed, we suggest using a valance FF330 may be used for either bases or 30″ walls

SKU	W	H	D	Price	QTY.
FF330	3	30	3/4	$27.00
FF396	3	96	3/4	$73.00

DECORATIVE END PANELS
All decorative end panels are actual doors that are finished on both sides DWEP = Decorative Wall End Panel DEPVB = Decorative End Panel Vanity Base DEPB = Decorative End Panel Base View More

SKU	W	H	D	Price
DWEP30	11 1/4	29 7/8	3/4	$103.00
DWEP36	11 1/4	35 7/8	3/4	$117.00
DWEP42	11 1/4	41 7/8	3/4	$126.00
DEPVB	20 1/4	29	3/4	$190.00
DEPB	23 1/4	29	3/4	$190.00

END PANEL - (VINYL LAMINATE)
P4836V – Finished End Panel — 48″ x 36″ x 1/4″ (grain runs with 36″) P4896V – Finished End Panel – 48″ x 96″ x 1/4″ (grain runs with 96″) Plywood with vinyl laminate

SKU	W	H	D	Price	QTY.
P4836V	48	36	1/4	$110.00
P4896V	48	96	1/4	$184.00

BEADED PANEL
Finished Beaded Panel — 48″ x 96″ x 1/4″ (bead runs with 96″) Spacing between beads is approximately 1 3/4″ Plywood with vinyl laminate

SKU	W	H	D	Price	QTY.
BP4896	48	96	1/4	$321.00

WALL SKIN
Wall Skin Panel — 11 1/4″ x 42″ x 1/4″ Plywood with vinyl laminate

SKU	W	H	D	Price	QTY.
WSKIN	11 1/4	42	1/4	$48.00

BASE SKIN
Base Skin Panel — 23 1/4″ x 34 1/2″ x 1/4″ Plywood with vinyl laminate

SKU	W	H	D	Price	QTY.
BSKIN	23 1/4	34 1/2	1/4	$66.00

REFRIGERATOR END PANEL WITH FILLER
REFP24 – 23 13/16″ x 96″ x 1/2″ with 1 1/2″ filler REFP30 – 29 7/8″ x 96″ x 1/2″ with 1 1/2″ filler Panel is 1/2″ plywood with vinyl laminate Filler is 1 1/2″ solid maple

SKU	W	H	D	Price	QTY.
REFP24	23 13/16	96	1 1/2	$165.00
REFP30	29 7/8	96	1 1/2	$187.00

REFRIGERATOR END PANEL
3/4REFP24 — 23 7/8″ x 96″x 3/4″ 3/4REFP30 — 30″ x 96″x 3/4″ Panel finished on two sides and one long edge Plywood with vinyl laminate

SKU	W	H	D	Price	QTY.
3/4REFP24	23 7/8	96	3/4	$391.00
3/4REFP30	30	96	3/4	$462.00

DISHWASHER END PANEL WITH FILLER
DWP1.5 — 24″ x 34 1/2″ x 1/2″ with 1 1/2″ filler DWP3 — 24″ x 34 1/2″ x 1/2″ with 3″ filler DWP6 — 24″ x 34 1/2″ x 1/2″ with 6″ filler Panel is 1/2″ plywood with vinyl laminate Filler is solid maple

SKU	W	H	D	Price
DWP1.5	24	34 1/2	1 1/2	$90.00
DWP3	24	34 1/2	3	$93.00
DWP6	24	34 1/2	6	$159.00

Moulding

Details:

All mouldings are 8 feet long
Product images are for illustration purposes only and may differ from actual product
W = Width, H = Height, D = Depth

TOEKICK
4 1/2″ Toekick Plywood with vinyl laminate 8 feet long

SKU	W	H	D	Price	QTY.
TOEKICK	96	4 1/2	1/8	$29.00

SMALL CROWN - FACE MOUNT
Face Mount Crown Moulding 8 feet long

SKU	W	H	D	Price	QTY.
SMCROWN214	96	2 1/16	1 3/8	$61.00

SMALL CROWN - TOP MOUNT
Top Mount Crown Moulding Seated on top of cabinet with 3/8″ top nailing flange 8 feet long

SKU	W	H	D	Price	QTY.
SSMCROWN214	96	2 1/16	1 3/8	$75.00

LARGE CROWN - FACE MOUNT
Face Mount Crown Moulding 8 feet long

SKU	W	H	D	Price	QTY.
LGCROWN4	96	3 3/16	2 7/16	$85.00

LARGE CROWN - TOP MOUNT
Top Mount Crown Moulding 8 feet long

SKU	W	H	D	Price	QTY.
SLGCROWN4	96	3 3/16	3 15/16	$122.00

STARTER CROWN
4″ Starter Crown Moulding; not finished on back 8 feet long

SKU	W	H	D	Price	QTY.
STCROWN	96	4	2	$209.00

COVE CROWN
1 3/4″ Cove Crown Moulding 8 feet long

SKU	W
